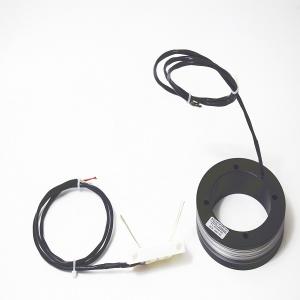

CCTV Two Half Style 200Rpm 56mm Separate Slip Rings
ID 56mm two half style slip ring with aluminium alloy housing ,working speed 0-200 rpm,suitable for small space like CCTV pan
SCN series refers to a family of two half style slip ring ,also named separate slip rings. It's a derivation from an independent unit that can transmit current, data signal from stationary to rotating part. The slip ring (rotor) and brush block (stator) are offered as separate components to be mated by the customer in their system. The through bore is 56mm,with one group 485 signal .working speed is 0~200 rpm .Application like electrical test equipment ,manufacturing and process control equipment,indexing tables,CCTV pan,and marine engineering equipment.Other special requirements please contact with CENO www.ceno360.com.
Specification
| SCN056-03S | Specification |
| Rings | 1*485 signal |
| Voltage | 0~220VAC |
| Dielectric strength | ≥300V@50Hz |
| Insulation resistance | ≥100MΩ@100VDC |
| Working temperature | -20°C~ +60°C |
| Contact material | Precious metal |
| Working speed | 0~200 rpm |
| Through hole size | 56 mm |
| Protection grade | IP00 |
| Housing material | Aluminium alloy |
Features
- Hollow shaft installation
- Through bore 56mm
- Long service life
- Anti-jamming ,very low cost
- Suitable for small space
- Connecting way optional
- Easy to install,low electrical noise
- Low torque, smooth rotation
- Power & signal can be combined
Applications
- Indexing tables
- CCTV pan
- Exhibit display equipment .
- Custom Machinery
- Electrical test equipment
- Marine engineering equipment
- Ferris wheel
- Industrial application
Optional
- Through hole size
- Current & ring numbers
- Signal type
- IP protection grade
- Contacts material
- Flexible customization
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
