Integrated fiber optical rotary joint 1 channel with wavelength 1310~1550nm
ECN000-02P-05P2-01F is an integrated fiber optical rotary joint from CENO electronics company. There are 2 circuits for 30A, 5 circuits for 10A and 1 channel for Fiber optic with wavelength 1310/1550nm. It’s working stably at the speed of 0~300rpm within the temperature from -40°C to +70°C. And it’s mainly use in the damp and hot, many vibrations, easy to bread mold, salt spray test harsh environments.
Specification
| ECN000-02P-05P2-01F | Specification |
| Current & Circuits | 2 circuits * 30A, 1500 VDC; 5 circuits * 10A, 48VDC |
| Rating Voltage | 1500 VDC / 48VDC |
| Dielectric strength | 2 circuits 30A : ≥ 3000VDC@50Hz.60s.1mA 5 circuits 10A : ≥ 500VDC@50Hz.60s.1mA |
| Isolation resistance | ≥500MQ@1000VDC |
| Contact resistance floating | ≤10mΩ |
| Lead wire size | 2.5 mm²Silica gel high voltage wire AF-1.0mm² wire |
| Lead wire length | Rotor end: 600±20mm Stator end: 600±20mm |
| Operating speed | 0~300rpm |
| Contact material | Precious metal |
| Housing material | Stainless steel |
| Working temperature | -40°C~+70°C |
| Storage temperature | -50°C~+80°C |
| Working humidity | ≥95% ( without frozen ) |
| IP protection grade | IP54 |
| Working life | 50 ~ 80 Million rotations |
| Net weight | ≤ 1.7 Kg |
| | |
| Fiber | Parameter |
| Channel | 1 |
| Wavelength | 1310/1550 nm |
| Fiber type | Single mode |
| Insert loss | <2.0dB (Single mode) |
| Insert variation | <0.5dB (Single mode) |
| Contact type | Rotor : FC/PC; Stator : LC/PC |
| Return loss | >40dB (Single mode) |
| Tensile strength | 3N (3m outer shell) |
| Encapsulated type | Ø3mm |
| Service life | 50~80Million Rotation |
| Maximum optical power | 23dBm |
| Fiber pigtail length | Rotor: 250+50mm fiber contact FC/PC Stator: one LC-LC Duplex fiber couple metal adapter, both of the stator ends contact LC/PC,and a length of jumper with 1.5m. |
Features
• Integrated power & 1 cannel fiber signal
• Transmit stably with low temperature -40°C
• Most parameter is optional
Applications
• Automatic machine
• mountain areas
• Measuring instrument
• the oilfield.
Optional
• Circuit number & Current
• Working speed
• Protection grade
• Operating temperature

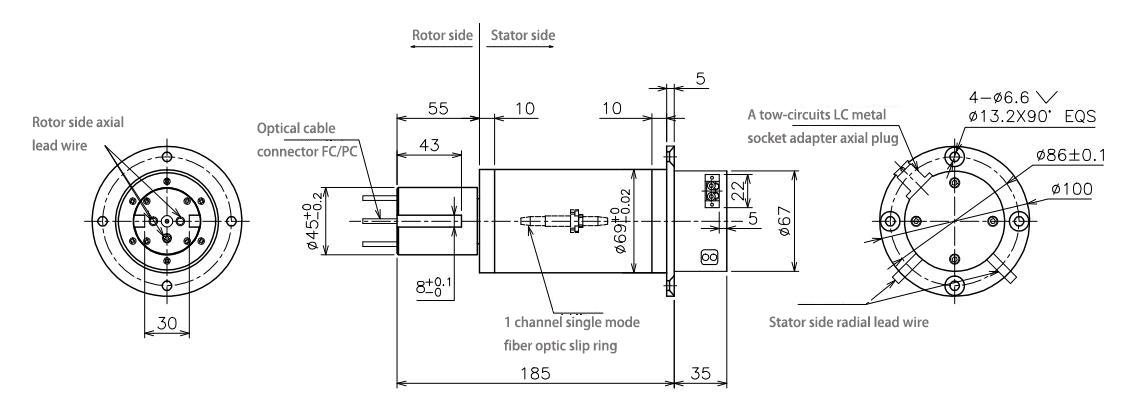

Outline drawing
