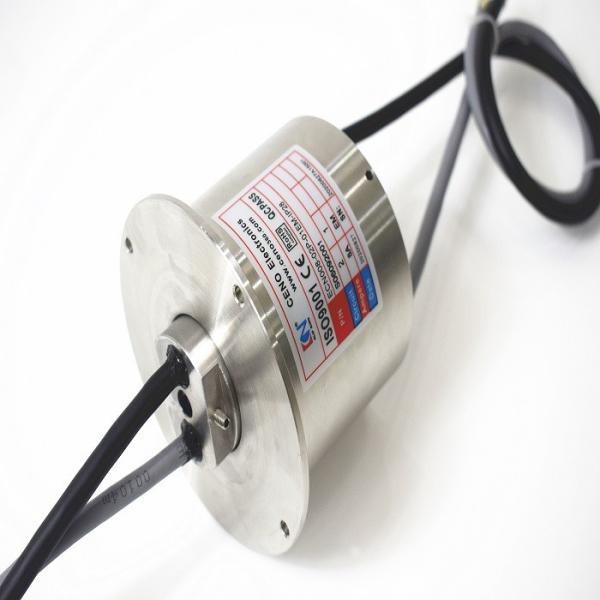

100M Ethernet 50rpm 8mm Waterproof IP68 Slip Ring
ECN008-02P-01EM-IP68
It’s a waterproof slip ring with protection grade IP68 ,combine with 100M Ethernet and power.The protection grade design and material selection for the slip ring is associated with working environment liquid ingredients, such as sea water, fresh water, oil etc.CENO's water-proof slip ring is designed for ships, harbor equipment,test equipment and some application which has water or moisture environment.
Specification
| ECN008-02P-01EM-IP68 |
| Rings | 2*8A,1*100M Ethernet |
| Voltage | 0~220VAC/VDC |
| Electrical noise | ≤30mΩ(50rpm) |
| Dielectric strength | ≥1000V@50Hz(power)
≥300V@50Hz(signal) |
| Insulation resistance | ≥500MΩ@500VDC(power)
≥100MΩ@300VDC(signal) |
| Operating speed | 0-50 rpm |
| Contact material | Precious metal |
| Housing material | Stainless steel 316 |
| IP protection grade | IP68 |
| Through hole size | 8 mm |
Features
- IP Protection reach to IP68
- High pressure resistant,anti-corrosion
- Could work under water 1000M
Applications
- Beer machinery
- Filling machinery
- Drilling platform & oil well
Optional
- Through hole size
- Current rating
- Ethernet type
- IP protection grade

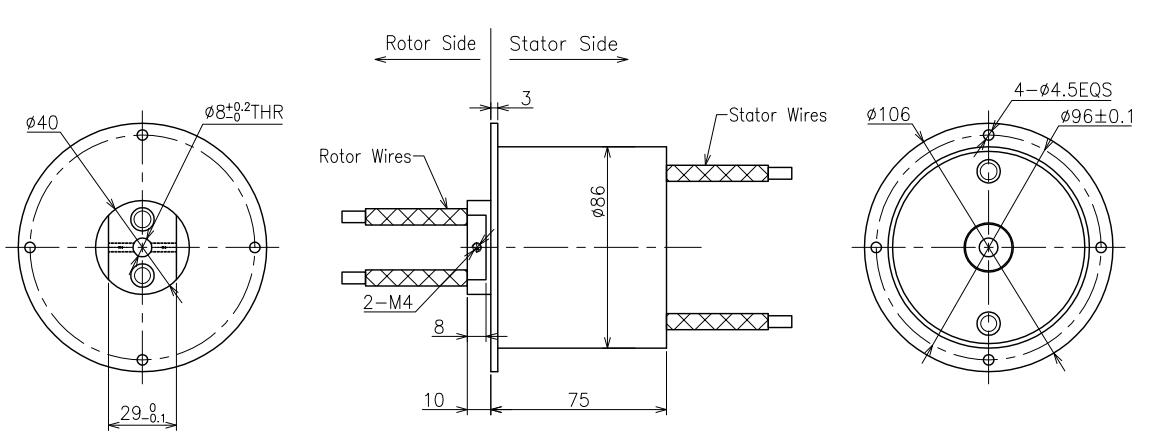

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
