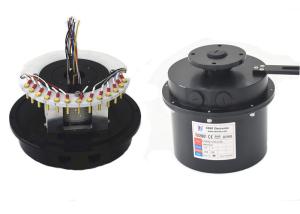

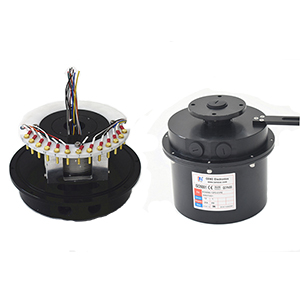

Weatherproof And Dust Prevention Rotary Electrical Interfaces
This is high protection rotary joint for food machinery, there are 12 circuits transferring power or signal with one circuit for PE.it adopts advanced fiber brush multipoint contact, low friction,long life.when the cover is correctly
sealed,it can use for dust prevention and weatherproofed to IP65,housing material is aluminum alloy,mounting flanges can be designed to suit customer's requirements,and ATEX compliant is optional, this power slip ring can
integrate Fiber,RF,pneumatic,hydraulic etc.
Specification
| ECN000-12P2-01PE | Picture |
| Current | 12*10A,1*PE |  |
| Voltage | 415VAC |
| Electrical noise | ≤30mΩ (50rpm) |
| Dielectric strength | ≥1500V@50Hz |
| Insulation resistance | 500MΩ@500VDC |
| Operating speed | 0-20 rpm |
| Contact material | precious metals |
| Housing material | aluminum alloy |
| Operating temperature | -20~+60℃ |
| IP protection grade | |
Features
- Easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
- Low friction, long life,low torque, smooth rotation
- Fiber brush multipoint contact
Applications
- Food machinery
- Construction engineering
- Industrial automation equipment
Optional
- ATEX compliant
- Current rating
- Installation way
- IP protection grade
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
