8 Core Shield Wire High Protection Industrial Slip Ring For Cable Reel
An electrical slip ring is a device used to transfer power and data from a stationary to a
rotating structure. Slip rings can provide continuous or intermittent rotation while
transmitting power and data -simplifying operation, improving application performance,
and eliminating risk of damage to wiring between movable parts.
Characteristic of product
◆ High Protection level
◆ Reliable Contact ,stable performance
◆ Compact size, low torque ,low contact resistance
Application
◆ Cable reel
◆ Multiple signal types can be integrated
Optional
◆ Circuit number
◆ Current rating
◆ IP protection
◆ Signal type
Specification
| Model: ECN000-02P2-05P-33S Parameter |
| Housing Material | Stainless steel | Protection Grade | IP65 |
| Working Speed | 0~50rpm | Rating Voltage | 380 VAC |
| Insulation Resistance | ≥500MΩ@500VDC(power) ≥300MΩ@100VDC(signal) | Dielectric Strength | ≥1500V@50Hz(power) ≥500V@50Hz(signal) |
| Resistance fluctuation | ≤70MΩ | Contact Material | Precious metal |
| Lead Wire Size | AWG7#/12#/17#/22# tin-coated ®UL ,8 core shield wire | Lead Wire Length | Rotor:1500mm, Stator:1500mm |

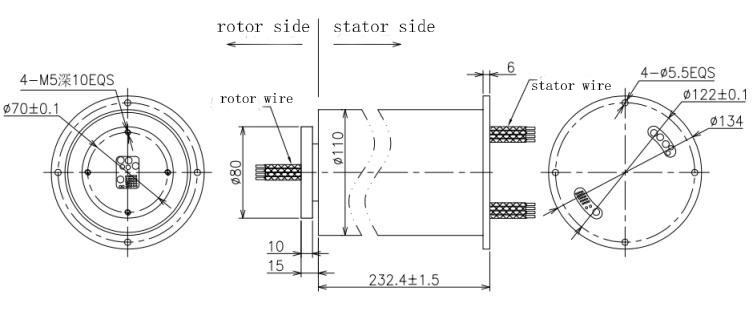

Product Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
