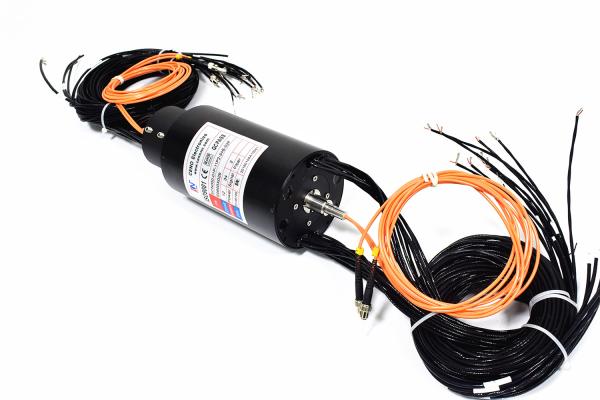

Fiber Integrate Power Slip Ring With Reliable Performance Various Signal
Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application,
to integrates the current, signal circuits and optical fiber joint.Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.
Characteristic
- Transmit various signals
- Integrate Fiber optic rotary joint and power slip ring
- Transmit fiber optic signal ,no disclose,no EMI
- Reliable performance
Option
- Circuit
- Protection grade
- Signal type
- Installation way
Application
- Automation equipment
- Motion Simulation test equipment
Specification
| Specification | Picture |
| Current | 1*30A,7*10A,30*1A,4*2A,4*6A |  |
| Working Temperature | -20℃~+60℃ |
| Protection Grade | IP54 |
| Working speed | 0~200rpm |
| Contact material | Gold to Gold |
| Rating Voltage | 500VAC/50VDC/240VAC/24VDC |
| Housing material | Aluminum Alloy |
| Lead Wire Length | 1500mm |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
