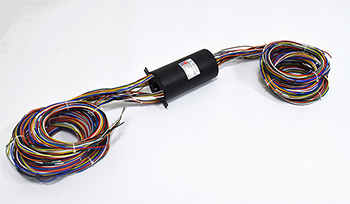

ID 38.1mm Through Bore Slip Ring At Competitive Price With Lead Wire Length 4000mm
A standard through hole slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals.
Below is the slip ring's flange mounting way
1) Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.
Characteristic
Optional
- Circuit number
- Protection grade
- Signal type
Application
- Automation Equipment
- Antenna
Specification
| ECN038-36P3 Specification | Picture |
| Current | 36*15A |  |
| Through hole size | Ø38.1mm |
| Protection Grade | IP54 |
| Working speed | 0~300rpm |
| Contact material | Precious metal |
| Rating Voltage | 380VAC |
| Lead Wire Size | AWG 14# |
| Lead Wire Length | 4000mm |

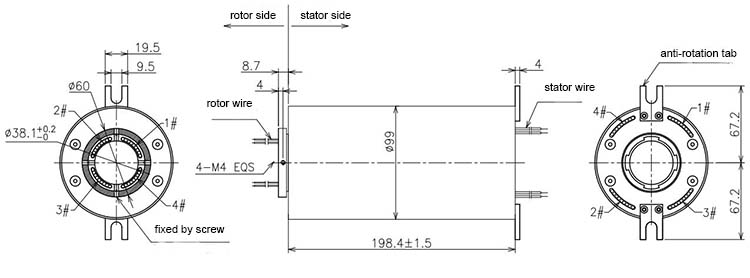

Outline drawing
Why CENO
CENO is one technology company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24/7 consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
